Access Panel
Metal Door
Fire Rated 60 Min.
Picture Frame
From £38.00 (Ex. VAT)

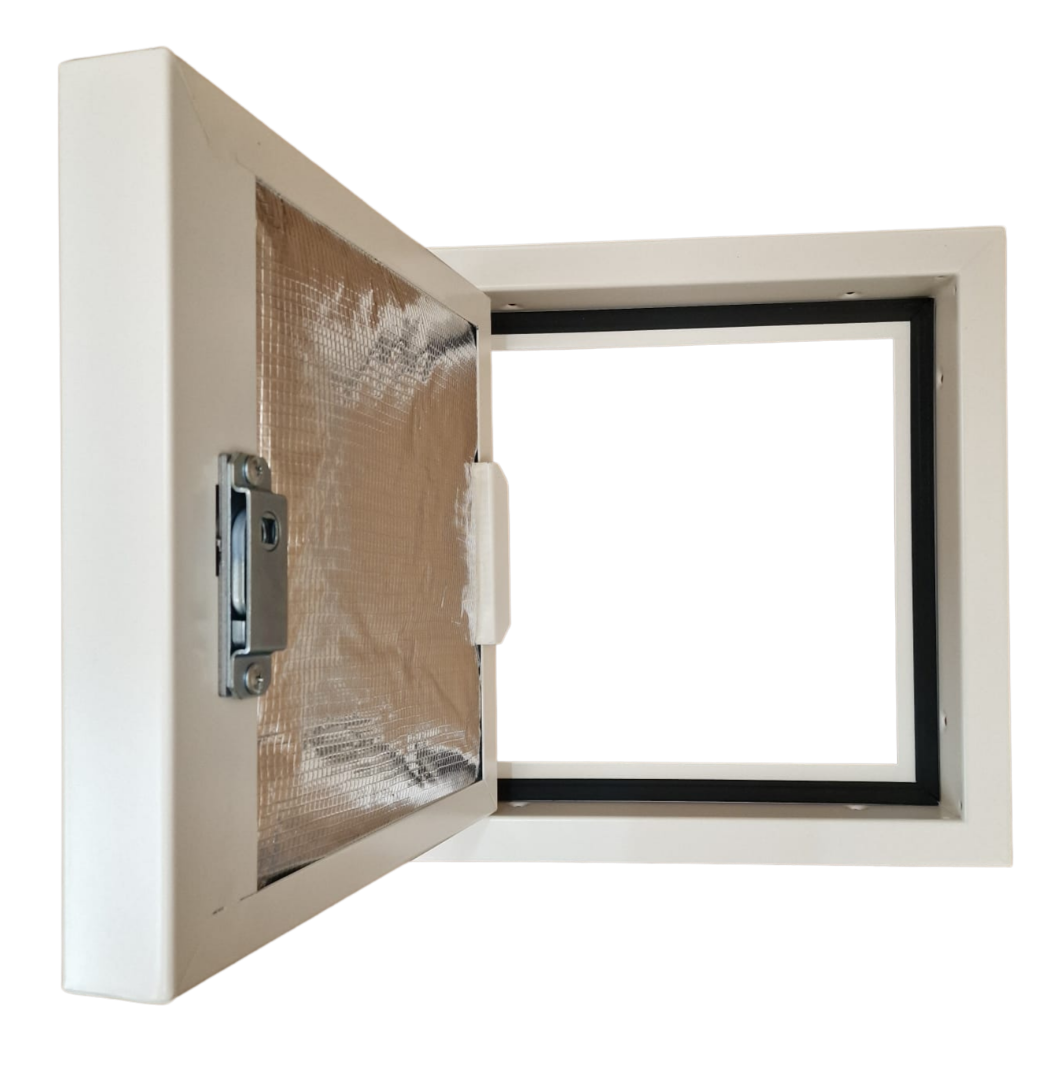

Previous Next Fire Rated Access Panel – Picture Frame
For Walls & Ceilings (Metal)
Contact us for quantity discounts.
Free delivery to most of the UK
Delivery next day to 48 hours
Specification
- Fire Rated Access Panel – 1 Hour Fire Rated
BS EN 1634-1:2014+A1:2018
BS EN 1363-2: 1999
BS EN 1363-1: 2012 - Picture Frame 25mm Width
- Manufactured 1.2mm electro-galvanised mild steel
- Powder coated RAL 9010 Pure White Matt
- Budget Lock and T-Key as standard quarter turn action
- Concealed hinge
- Lock collar and bung cover
- Intumescent gasket
- Acoustic properties 35dB estimated (test pending)
- 1200mmx600mm and 900mmx600mm suitable for walls only**
| Size (mm) | Structural Opening (mm) | Clear Opening (mm) | Depth (mm) | Weight (kg) | Price (£) |
| 200x200 | 205x205 | 100x140 | 45 | 2 | 38.00 |
| 300x300 | 305x305 | 200x240 | 45 | 3.5 | 39.00 |
| 350x350 | 355x355 | 250x290 | 45 | 3.9 | 49.00 |
| 400x400 | 405x405 | 300x340 | 45 | 5 | 52.00 |
| 450x450 | 455x455 | 350x390 | 45 | 6 | 54.00 |
| 500x500 | 505x505 | 400x440 | 45 | 6.5 | 56.00 |
| 550x550 | 555x555 | 450x490 | 45 | 7 | 58.00 |
| *600x300 | 605x305 | 500x240 | 45 | 5.20 | 62.00 |
| 600x600 | 605x605 | 500x540 | 45 | 8 | 59.00 |
| *900x600 | 905x605 | 800x540 | 45 | 10 | 120.00 |
| *1200x600 | 1205x605 | 1100x540 | 45 | 12 | 182.00 |
*Hinged on long side
** 1200x600mm and 900x600mm suitable for walls only
