Access Panel
Metal Door
Picture Frame
From £16.75 (Ex. VAT)

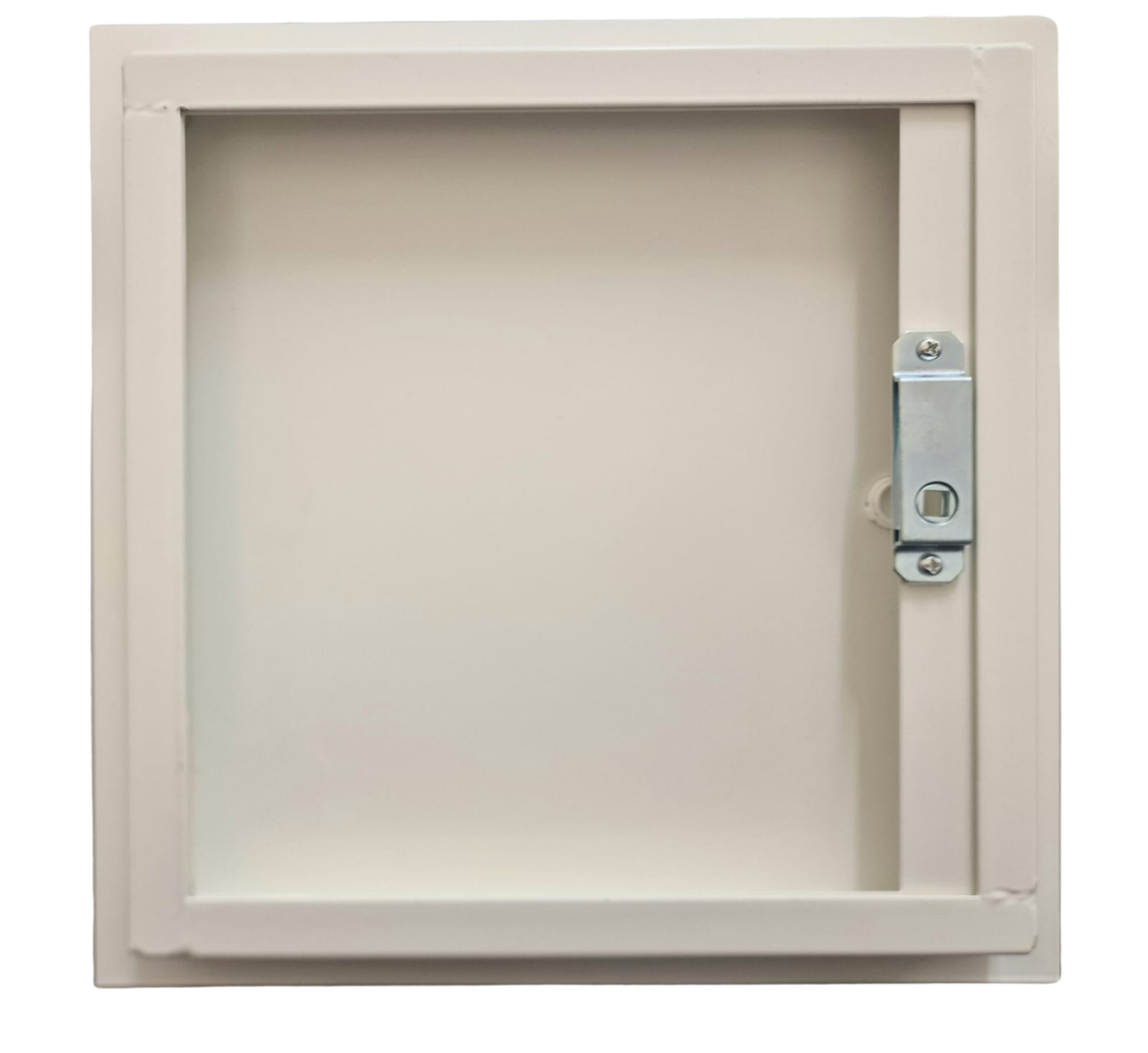

Previous Next Access Panel – Picture Frame
For Walls & Ceilings (Metal)
Contact us for quantity discounts.
Free delivery to most of the UK
Delivery next day to 48 hours
Specification
- Picture Frame 25mm Width
- Manufactured 1.2mm electro-galvanised mild steel
- Powder coated RAL 9010 Pure White Matt
- Budget Lock and T-Key as standard quarter turn action
- Concealed hinge
- Lock, collar and bung cover
- Acoustic 23dB
| Size (mm) | Structural Opening (mm) | Clear Opening (mm) | Depth (mm) | Weight (kg) | Price (£) |
| 150x150 | 155x155 | 90x105 | 35 | 1 | 16.75 |
| 200x200 | 205x205 | 100x140 | 35 | 1.3 | 19.00 |
| 300x300 | 305x305 | 200x240 | 35 | 2.4 | 20.42 |
| 400x400 | 405x405 | 300x340 | 35 | 2.8 | 30.00 |
| 450x450 | 455x455 | 350x390 | 35 | 2.9 | 30.00 |
| 550x550 | 555x555 | 450x490 | 35 | 4 | 40.00 |
| *600x300 | 605x305 | 500x240 | 35 | 3.2 | 39.00 |
| 600x600 | 605x605 | 500x540 | 35 | 6 | 41.00 |
| *900x600 | 905x605 | 800x540 | 35 | 6.9 | 87.00 |
| *1200x600 | 1205x605 | 1100x540 | 35 | 9 | 105.00 |
*Hinged on long side
